Full Bonded VDSL CPE Splitter
Full Bonded VDSL CPE Splitter Full Bonded VDSL CPE Splitter Full Bonded VDSL CPE Splitter

Product Description

The Bonded CPE-01V is a full dual low-pass filter designed to enable up to two POTS services to coexist with two-line bonded ADSL2+ or VDSL2 data signals up to 30MHz.

The Bonded CPE-01V is unique from bonded pass through splitters where the second pair is simply left untreated. The Bonded CPE-01V filters both pairs, supporting an additional POTS line or billing services on the second pair. More importantly, treating the DSL signals on the second pair maximizes data rates to take full advantage of the bonded xDSL service.

As networks speed up and the microfilters typically used for xDSL connectivity hit their limitations, carriers need alternative, high-bandwidth CPE solutions that take them to their preferred demarcation point.

Product Benefits

  • Indoor Bonded VDSL2 POTS Splitter
  • Supports up to two POTS lines
  • Backwards Compatible to ADSL/2+
  • Industry Compliant
  • Secondary lightning/surge suppression
  • Compliant to Telcordia and CSA/UL Standards
  • 3 year warranty

Specifications

Dimensions 53mm(H) x 98mm(W) x 13mm(D)
2” x 3 7/8” x 1/2”
Mounting Wall mount (accepts two #8 or #10 wood screws)
Operating Temperature -40 to +65 °C
-40 to 149 °F
Weight 70g (0.15lbs)

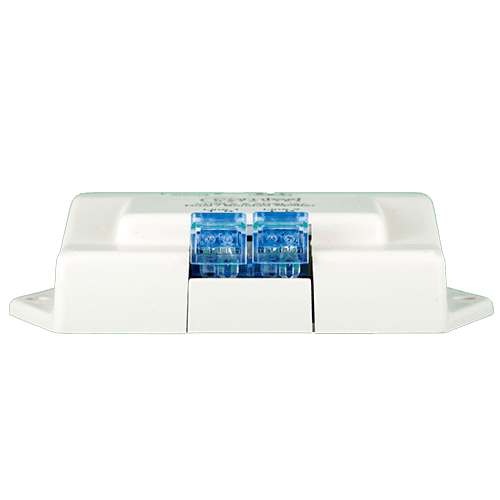

Communications interface LINE 1 & 2: Gel-filled Insulation Displacement Connectors (IDCs)

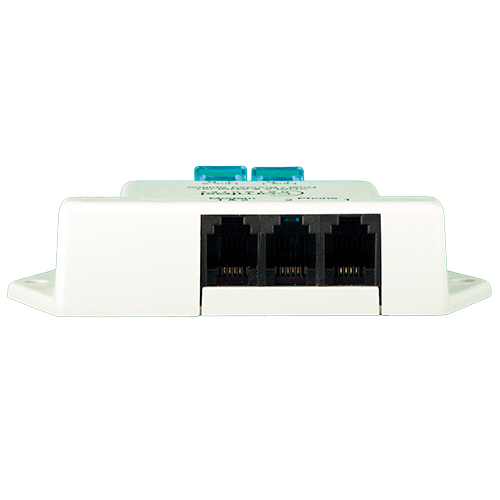

Modem Pairs 1 & 2: RJ11
Phone Pairs 1 & 2: RJ11
Capacity
  • One (1) Two-pair bonded xDSL subscriber line
  • Two (2) POTS lines
Compliance T1.413, T1.424, ITU-T G.992.1, G.992.3, G.992.5, G.993.1 & G.993.2, CSA/UL 60950, FCC part 68,CS03, GR1089 CORE (Level 1 & 2 Surges and Power Fault), GR3167 CORE, K.21, CSA, CS03.
Connection Types
  • RJ-11 connectors
  • Gel-filled Insulation Displacement Connectors (22AWG, 24AWG, or 26AWG solid conductor type)
