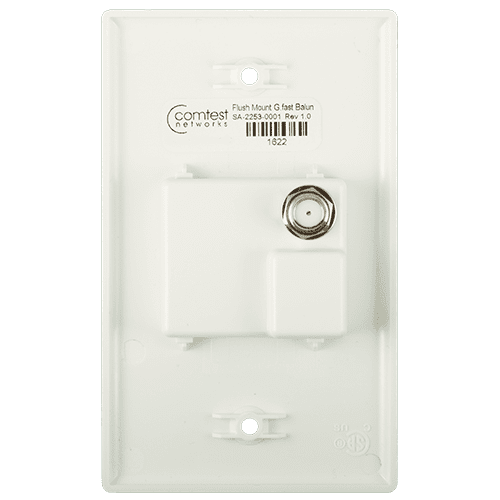

Flush Mount G.fast Balun
Flush Mount G.fast Balun Flush Mount G.fast Balun

Product Description

Comtest Networks has released a G.fast Balun solution specifically designed for longer coax reach. The Comtest G.fast Balun is a passive inline device designed to convert a G.fast signal carried on a balanced twisted pair cable to an unbalanced 75 Ω coax cable.

G.fast promises to deliver gigabit speeds over standard twisted pair Telco cables. Designed for use on short lengths of twisted copper, the reach can be extended by using coax. Capitalizing on the ultra-broadband capabilities of G.fast, you can push these higher bandwidths further and further into rural areas and older neighborhoods, homes and buildings. Due to real world constraints and the possible saturation of other services in the business and MDU environment, the optimum way to distribute G.fast is by using coax.

Our G.fast balun’s are also designed to be used in environments that do not have existing Telephone wiring or inadequate twisted pair wiring inside the home or building. These G.fast balun’s will provide an additional way to bring Video programming and high speed broadband services into the premise by using the existing coax which in many cases is already in the walls of these homes and buildings.

The Comtest Networks G.fast balun provides the perfect solution to provide superfast broadband for any MDU, business office and small campus environment.

Product Benefits

  • Converts balanced twisted pair signal to 75 Ω unbalanced signal
  • Allows coax to be used to carry the G.fast signal where twisted pair is of insufficient quality
  • Installed in NID, MDU or DPU enclosures or any wall box located inside the home
  • Installed in standard telephone wall outlet inside the home

Specifications

Dimensions 70.87mm(H) x 37.34mm(W) x 16.51mm(D)
2.79” x 1.47” x 0.65”
Mounting Mounting sled or tray accessory
Operating Temperature -40 to +65 °C
-40 to 149 °F
Weight 100g (0.2lbs)
Communications Interface 75Ω unbalanced: F-Type Coaxial Connector
100Ω balanced: RJ-11
Capacity 1 Subscriber loop per line unit
Compliance Compliant to CSA/UL Standards
Name Ordering number
Flush Mount G.fast Balun SA-2253-0001
