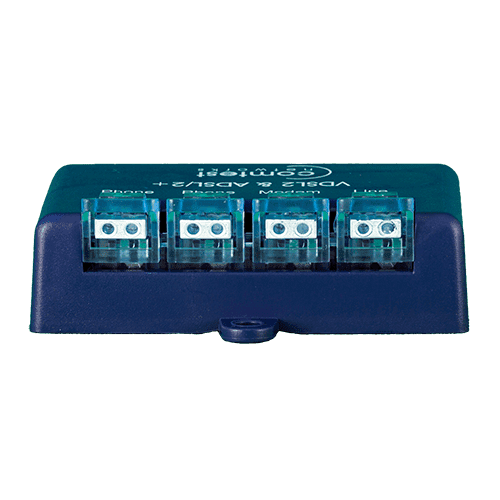

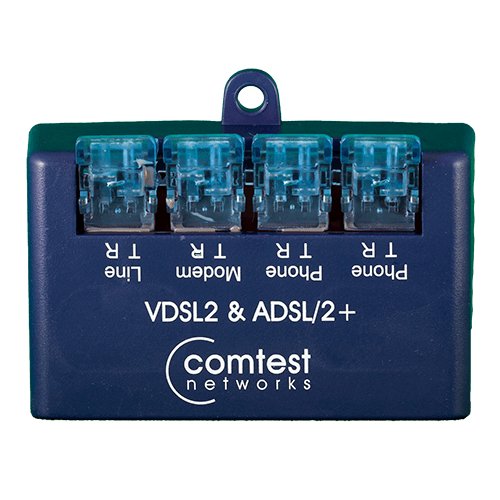

Universal VDSL Splitter
Universal VDSL Splitter Universal VDSL Splitter Universal VDSL Splitter

Product Description

The Comtest Universal POTS Splitter is a revolutionary VDSL2 Splitter. It was designed to simplify and reduce installation time, inventory and cost. The Universal POTS splitter continues Comtest’s reputation for innovative designs and will transform to meet your every demand.

The universal design allows for installation in multiple applications:
• Wall mount
• Flush mount applications
• MDUs

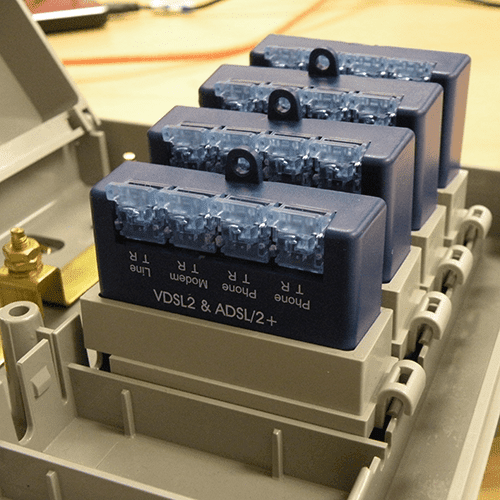

• NID Enclosures on the Customer side
• NID Enclosures on the TELCO side

The Universal Splitter is a full VDSL2 splitter, backward compatible to ADSL2+ and ADSL. With a potted cavity and gel-filled IDC connectors, the Universal splitter is suitable for all applications from the NID outside the house to inside the wall plate in apartments. Please refer to the product data sheet for applications notes on how the Comtest Universal splitter fits all of your deployment needs.

Product Benefits

  • Flexible design for installation in home, MDU or NID
  • Environmentally Sealed for outdoor applications
  • Secondary lightning/surge suppression
  • Stable over the varying voltages from transient events
  • Toolless gel-filled IDC for quick, reliable installation
  • Optional tab for mounting in NIDS with Ground Post

Specifications

Dimensions 58mm(H) x 64mm(W) x 20mm(D)
2.28” x 2.52” x 0.79”
Operating Temperature -40 to +85 °C
-40 to 185 °F
Weight 70g (0.15lbs)
Communications interface Connects to the xDSL, POTS service, and local Loop using gel-filled IDCs.
Capacity 1 Subscriber loop per line unit
Compliance T1.413, T1.424, ITU-T G.992.1, G.992.3, G.992.5, G.993.1 & G.993.2, CSA/UL 60950, FCC part 68, CS03, GR1089 (Level 1 & 2 Surges and Power Fault), GR3167
Connection Types
  • Gel-filled Insulation Displacement Connectors (22AWG, 24AWG or 26AWG solid conductor type)
Name Ordering number
Universal Splitter with Tab SA-4505-0001

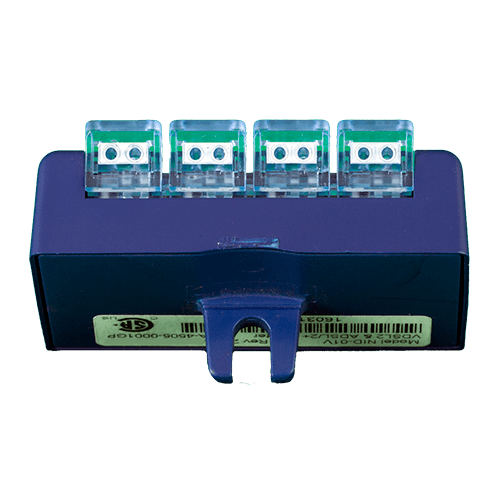

NID-01V Splitter with Ground Post SA-4505-0001GP
NID Adapter Clip SA-4504-0013
Flush Mount Kit SA-4504-0043
MDU Mounting Plate SA-4504-0044
