NID Full Bonded Dual VDSL2 Splitter with Test Jack
NID Full Bonded Dual VDSL2 Splitter with Test Jack NID Full Bonded Dual VDSL2 Splitter with Test Jack

Product Description

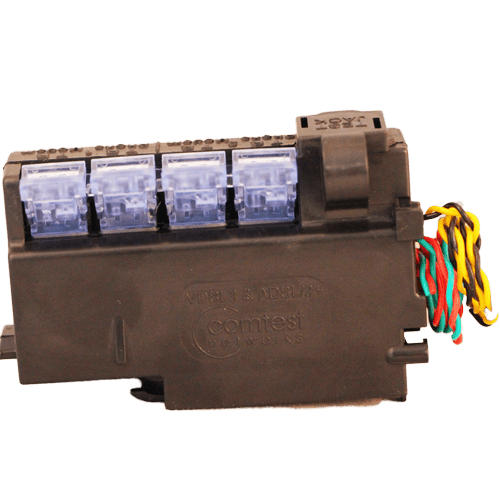

The Comtest NID-TJ‐FB POTS Splitter is two complete VDSL2 splitters in a single footprint. Keeping with Comtest’s reputation for innovative designs, the NID-TJ‐FB splitter will simplify your installation and provide filtering on both lines, while only occupying one slot in the NID/SNI. The NID‐TJ-FB is designed for simple and easy clip‐in installation in virtually all industry standard NIDs, allowing for the continued use of existing infrastructure while upgrading to new bonded VDSL2 standards.

The NID-TJ‐FB includes secondary surge protection on both lines. This serves a dual purpose. It protects the Splitter against lightning strikes and power crosses, reducing weather related failures and service calls. Secondly, the splitter offers additional protection of the equipment in the house reducing equipment failure due to surges.

The Splitter is environmentally sealed against the elements. This, in cooperation with the gel filled IDCs, protects against the risk of corrosion or failure caused by nicked wires during stripping.

Product Benefits

  • Easy Clip‐in installation to standard NID / SNI boxes
  • Single footprint required for both lines
  • Environmentally Sealed for outdoor applications
  • Secondary lightning/surge suppression
  • Stable over the varying voltages from transient events

Specifications

Dimensions 50.3mm(H) x 23.4mm(W) x 76.2mm(D)
1.98” x 0.92” x 3.00”
Operating Temperature -40 to +65 °C
-40 to 149 °F
Weight 85g (0.19lbs)
Communications interface Connects to the xDSL and POTS services using IDC. Line via twisted pair wire.
Capacity 2 Subscriber loop per line unit
Compliance T1.413, T1.424, ITU‐T G.992.1, G.992.3, G.992.5, G.993.1 & G.993.2, CSA/UL 60950, FCC part 68,CS03, GR1089 (Level 1 & 2 Surges and Power Fault), GR 3167
Connection Types
  • Gel-filled Insulation Displacement Connectors (22AWG, 24AWG or 26AWG solid conductor type)
