Flush Mount VDSL2 Splitter

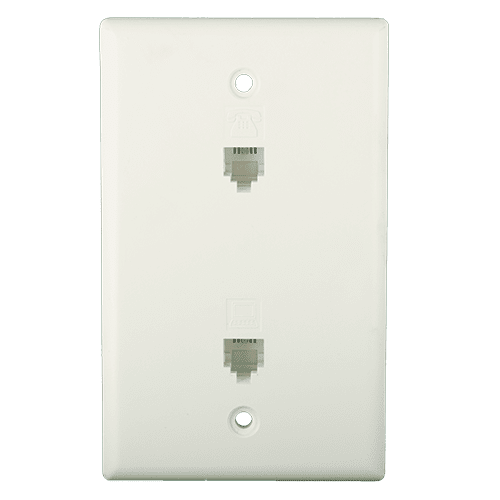

Flush Mount VDSL2 Splitter product image

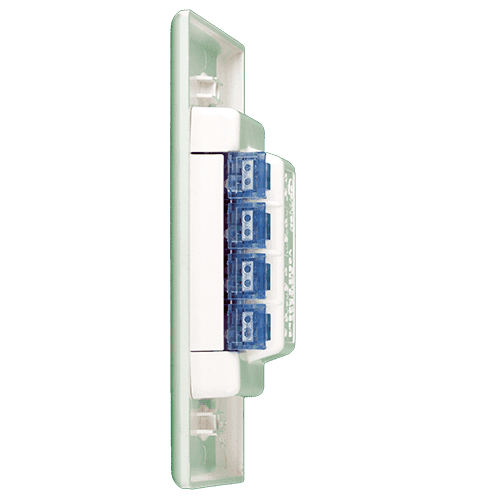

Flush Mount VDSL2 Splitter-1 product image

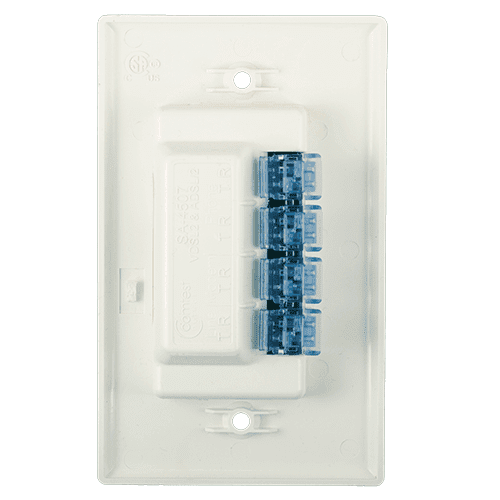

Flush Mount VDSL2 Splitter-2 product image
Flush Mount VDSL2 Splitter-3 product image

Product Description

The Comtest Flush Mount Splitter is a low-pass filter designed to enable POTS service to coexist with ADSL2+ and VDSL2 data signals up to 30MHz. The Flush Mount Splitter mounts conveniently in industry standard electrical boxes, resulting in a compact and clean installation ideal for use in apartments, condos, or homes where there is no NID or space for a standard splitter.

As networks speed up, microfilters typically used for xDSL connectivity hit their limitations. The Flush Mount VDSL2 Splitter provides a solution by offering a high-bandwidth splitter that take microfilters to their preferred demarcation point, delivering remarkable sound quality and advanced data service.

Product Benefits

  • Mounts in industry standard electrical/telephone boxes
  • Quick and clean installation using gel-filled IDC for a reliable connection every time
  • Secondary lightning/surge suppression
  • Compliant to Telcordia and CSA/UL Standards

Specifications

Dimensions70.9mm x 37.3mm x 16.5mm (H x W x D) (2.79” x 1.47”x 0.65”)
Operating Temperature-40 to +65 °C (-40 to 149 °F)
Weight30g (0.07lbs)
Communications InterfaceRJ-11 connectors for customer facing Modem and Phone connections. Gel-filled Insulation Displacement Connectors (22AWG, 24AWG or 26AWG solid conductor type) for POTS and Local Loop connections in electrical box.
Capacity1 Subscriber loop per line unit
ComplianceT1.413, T1.424, ITU-T G.992.1, G.992.3, G.992.5, G.993.1 and G.993.2, CSA/UL, FCC part 68, CS03
NameOrder number
Flush Mount VDSL2 Splitter
SA-4507-0001
