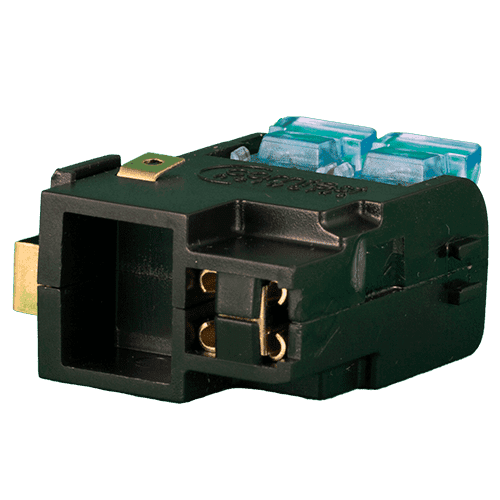

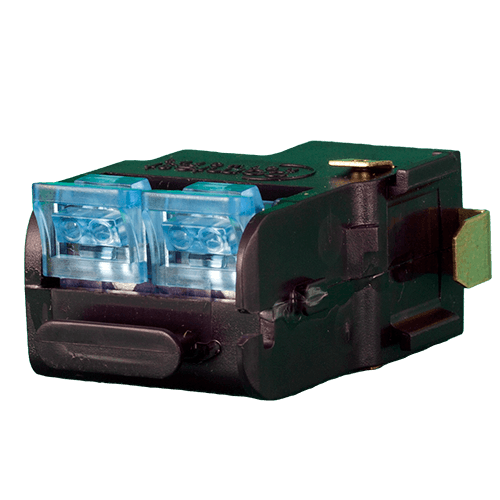

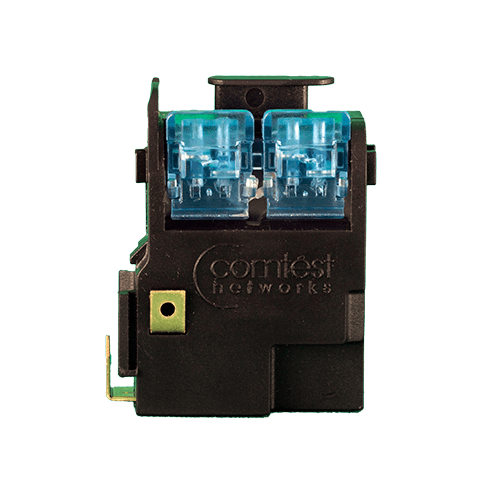

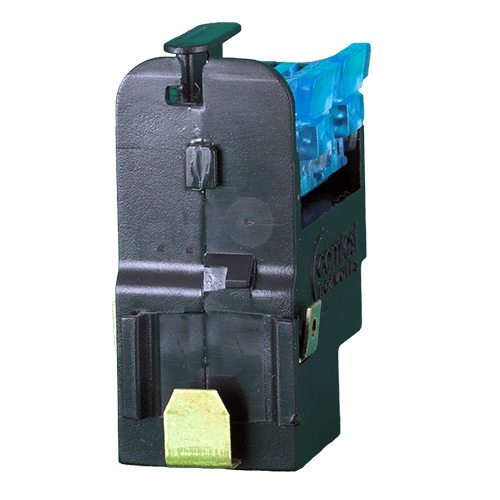

NID Primary Protection Module

NID Primary Protection Module product image
NID Primary Protection Module-1 product image
NID Primary Protection Module-2 product image
NID Primary Protection Module-3 product image
NID Primary Protection Module-4 product image

Product Description

This uniquely designed primary protection module is designed to fit into any standard Subscriber Network Interfaces (NID/SNI).

It attaches easily and secures to our Comtest NID splitters, the NID01-VTJ and NID01-VTFB and will attach to other Manufacturer splitters if needed. The Comtest Networks Primary Protection Module will connect to either a threaded or Fast-on ground post.

The Primary Protector GDT used is widely accepted as the best in the industry and our primary protection module is equipped with the Comtest Superior IDC Connectors.

Our Primary Protection Module has a small footprint and can be used for single and dual port design. This makes it easy and efficient for any DSL Bonded Services.

Product Benefits

  • Industry Compliant
  • Compliant to G.fast and VDSL2
  • Fits in all Standard NIDs
  • Single & dual port design
  • Easy and efficient for any DSL Bonded Services
  • Compliant to Telcordia and CSA/UL Standards
  • 3 year warranty

Specifications

Dimensions42mm(H) x 29.5m(W) x 20.3mm(D) (1.65” x 1.16” x 0.80”)
Operating Temperature-40 to +85 °C (-40 to 185 °F)
Weight23g (0.05lbs)
Communications InterfaceLine IN (Service wire): Gel filled IDC, Line Out (to Splitter): Gel filled IDC
Capacity1 Subscriber loop per line unit
Electrical SpecificationsDC spark-over voltage: 350 V +/- 20%, Impulse spark-over voltage at 100 V/µs < 750 V, Impulse spark-over voltage at 1 kV/µs < 900 V, Insertion Loss (input to output) < 0.1 dB
Connection TypesGel-filled Insulation Displacement Connectors (22 – 24 AWG solid conductor wire)
NameOrder number
NID Primary Protection ModuleSA-4705-0001
