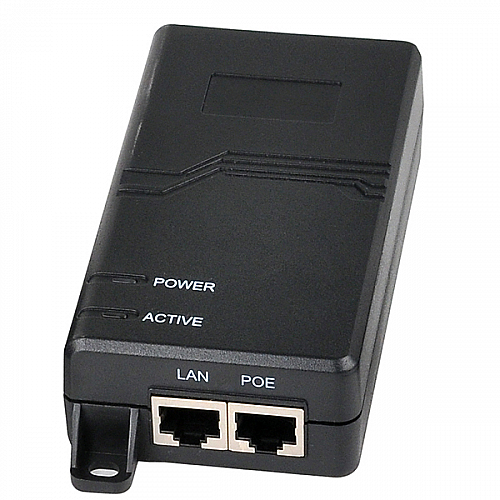

PoE Injector

Model: SA-4641-0001

The PoE in-line power following the IEEE 802.3at/af Power over Ethernet Plus standard makes the SA-4641-0001 capable of deliver Gigabit speed Ethernet data and up to 30 watts of power to remote ONT devices over one Cat5E/6 Ethernet cable.

Benefits

  • Compact-size plastic case
  • LED indicators for Power LED and Active LED
  • All-in-one design with internal power supply
  • Up to 1 IEEE 802.3at device powered
  • Provides DC 50-54V power over RJ45 Ethernet cable to device with Ethernet port
PoE Injector
PoE Injector
PoE Injector
SA-4641-0001

Specifications

Dimensions

31 (H) x 115 (W) x 62.5 (D) mm

1.22 x 4.53 x 2.46 "

Operating Temperature

0 to 50 * C

32 to 122* F

Weight

185 gm

0.41 lbs.

Interfaces

​Data Input Port: 1 x RJ45 STP
PoE (Data + Power) Output Port: 1 x RJ45 STP
AC Input Power Socket: 1

Capacity

1 PoE Splitter

Data Rate

10/100/1000 Mbps

Compliance

- IEEE 802.3af / 802.3at Power over Ethernet

- IEEE 802.3 / 802.3u / 802.3ab 10/ 100/ 1000BASE-T

Certified to

- CE-EMC

- CE-LVD

- FCC 47 CFR Part 15, Class B

- ANSI/UL 62368-1, UL/CSA Safety

Ordering information

Order number

SA-4641-0001

Name

PoE Injector
