3000 Series

3000 Series Legacy Central Office Equipment

Ensuring uncompromising data, video and voice, Comtest’s 3000 Series splitters are designed specifically for the European market. Their all-front connectors allow them to slot conveniently into ETSI racks at the CO or a remote location - without the need for swing shelves. Cards are compliant and available for POTS and VDSL2, POTS and G.fast (up to 212MHz) along with ADSL2+ and ISDN technologies.

Connectivity options are available to allow the 3000 series splitters to meet your exact fit and form requirements. Ease of installation is ensured, regardless of your cable dressing requirements.

Benefits

  • Industry Compliant
  • Connects up to 432 DSLAM high speed lines
  • Conveniently located either at a Central Office, remote, or multiple dwelling unit
  • High density and modular design translates into low cost per port
  • All front access
  • Supports ADSL2+, VDSL and G.fast technology up to 212MHz
3000 Series
3000 Series
3000 Series

Specifications

Dimensions

400mm(H) x 221mm(D) (15 3/4” x 8 3/4”)

Height

3048 (1RU) = 44mm (1 3/4”) | 3144 (3RU) = 124mm (4 7/8”) | 3192 (5RU) = 164mm (6 7/16”) | 3432 (9RU) = 396mm (15 9/16”)

Mounting

Rack adapters for 483mm (19”) or 584mm (23”) shelves

Operating Temperature

-40 to +65 °C

-40 to +149 °F

Humidity

5 to 95% (non-condensing)

Capacity

24 Subscriber Loops per card | 3048 = 2 cards (48 ports) | 3144 = 6 cards (144 ports) | 3192 = 8 cards (192 ports) | 3432 = 18 cards (432 ports)

Communications Interface

DSLAM, PSTN, and Telco Local Loop via three (3) RJ-21 (50 pin) per card

Protection

Secondary protection via current and over voltage devices

Compliance

CE, ITU K.20, CSA/UL 60950 | North American cards: T1.413, T1.424, ITU-T G992.1, G992.3, G992.5, G.993.1, G.993.2 | ETSI TS 101 952 (Annex A and B)

Ordering information

Order number

SA-3048

Name

Model 3048 POTS/ISDN Splitter Shelf

Datasheet Print-friendly
Installation guide

Order number

SA-3144

Name

Model 3144 POTS/ISDN Splitter Shelf

Datasheet Print-friendly
Installation guide

Order number

SA-3192

Name

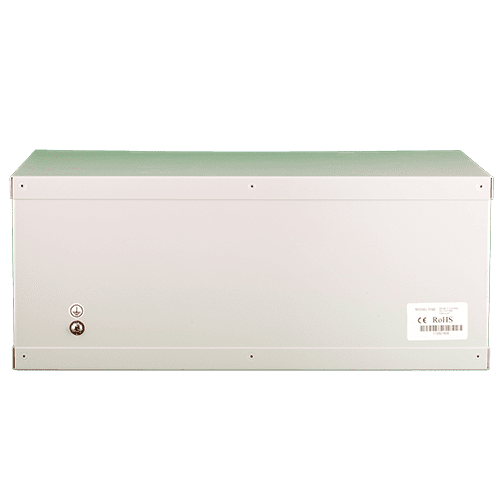

Model 3192 POTS/ISDN Splitter Shelf

Datasheet Print-friendly
Installation guide

Order number

SA-3432

Name

Model 3432 POTS/ISDN Splitter Shelf

Datasheet Print-friendly
Installation guide
